Bag Closing-Portable Sewing Machines

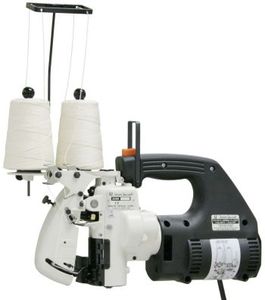

Union Special 2200 Series
Heavy Duty Portable - Combined upper and lower feed grips both sides of the material - Built-In thread chain cutter - 2-thread or 1-thread available - Adjustable stitch length - Weight 11lbs (5 kg)
Union Special 4000 Series
Heavy-Duty Design Built-in Chain Cutter Single Thread Weight: 12lbs 110v or 22v

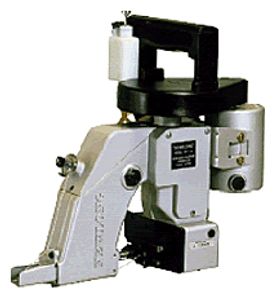

American Newlong NP7A
Economical NP-7A Series Portable Bag Closers With Steel Cam Is Designed For Continuous Use Features: High speed hand held bag closer offers 1,700-1,900 R.P.M. for filled bag closing. Features a specially designed shock resistant isolation handle. This portable bag closer also offers an automatic oiling system that applies lubrication to moving components and an optional overhead suspended spring balancer support. Tape binding attachment available at extra cost.

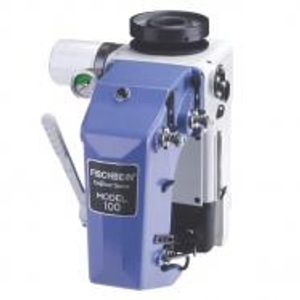

Fischbein Plain Sewing Model 100
• System component • Plain sewn closure • Thread pusher knife • Optional rotary knife • Standard 2.5 stitches/inch • Type 401 2-thread stitch • 35 to 55 feet per minute

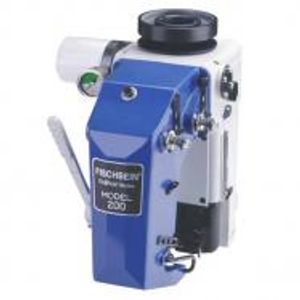

Fischbein Plain sewing Model 200
• System component • Plain sewn closure • Standard rotary knife • Standard 2.5 stitches/inch • Type 401 2-thread stitch • 55 to 75 feet per minute
Fischbein Tape Sewing Model 101
System component • Tape sewn closure • Scissor type tape cutter • Standard 2.5 stitches/inch • Type 401 2- thread stitch • 35 to 55 feet per minute
Pedestal Mounted Sewing Machines

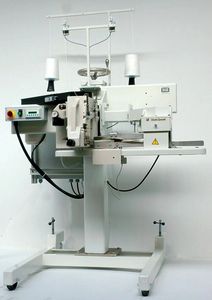

Union Special 80800 Series
American Newlong DS-9C Tape Sew Bag Sewing
Union Special BC 200 Series
Rugged, Dependable Machine In the market over 40 years! Easy Maintenance Up to 50ft/min
Union Special BC 200 Series
American Newlong DS-9C Tape Sew Bag Sewing
Union Special BC 200 Series
75ft per minute - Tape Closure - Fastest on Market! The only machine on the market that is TOTALLY enclosed Self-Lubricating oil system Low Noise and Vibration due to Rotary Shaft Design Mechanism rated at over 3000RPM (over 100ft/min) 60% Tape Trim Savings with Guilottine Cutter for Taping Operations
American Newlong DS-9C Tape Sew Bag Sewing
American Newlong DS-9C Tape Sew Bag Sewing
American Newlong DS-9C Tape Sew Bag Sewing
This bag closing head is the fastest single needle bag closing machine available (2,700 r.p.m.) for virtually all types of filled bags. Well balanced rotational parts ensure very little vibration and promote a highly reliable closing system. Filled bag sewing machine is ideally suited for high speed bag closing and filling applications
This bag closing head is the fastest single needle bag closing machine available (2,700 r.p.m.) for virtually all types of filled bags. Well balanced rotational parts ensure very little vibration and promote a highly reliable closing system. Filled bag sewing machine is ideally suited for high speed bag closing and filling applications where conveyor speeds exceed 80 FPM. A unique but simple fully enclosed oil bath lubrication system greatly extends the life of moving parts, promotes reliability and longevity, and reduces maintenance costs. Upon exit of the bag, a built-in air cylinder driven guillotine style cutter will automatically cut thread and or crepe tape. This feature reduces material costs and promotes a consistent finished appearance.
Bag Closing Pedestals

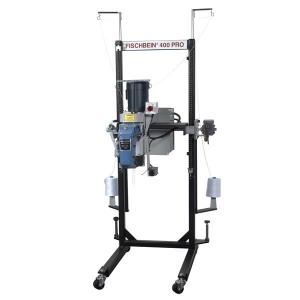

Fischbein 400 Pro Sewing System
• Pedestal mounted • Plain sewn closure • Entry level model • Speed 35 to 55 fpm • Model 100 Sewing Head • Height adjustable • No infeed system • 1 HP motor • Minimum of 6” bag free top • NEMA 12 rated electrics • Voltages 230/380/460

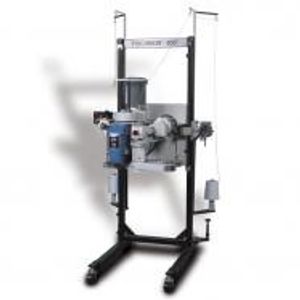

Fischbein 400 NS Sewing System
Pedestal mounted • Plain sewn closure • Full feature/option model • Speed 35 to 55 fpm • Model 100 Sewing Head • Height adjustable • Automated infeed system • 1 HP motor • Minimum of 6” bag free top • NEMA 12 rated electrics • Voltages 230/380/460/575

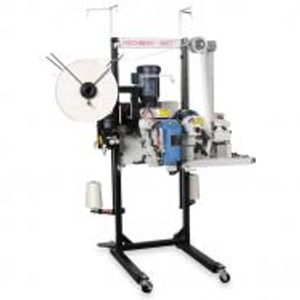

Fischbein 400 T NS Tape Sewing System
Pedestal mounted • Tape sewn closure • Full feature/option model • Speed 35 to 55 fpm • Model 101 Sewing Head • Height adjustable • Automated infeed system • 1 HP motor • Minimum of 6” bag free top • NEMA 12 rated electrics • Voltages 230/380/460/575
Union Special US400 Plain Sew System
- Plain Sew Closure
- BC211P__ series head with Jump-Out scissors for cutting chain
- Available with optional Fold-over kit
- PLC controls for start/stop and controlling tail length
- Heavy Duty Steel Pedestal equipped with Casters so its moveable.
- Fast! up to 75 ft/min
- Optional VFD on Sewing Head and Infeed
- Optional Tape Pre-Feeder for PP Tape or Higher Speeds
