Bag Filling-Mechanical Gross Weigh

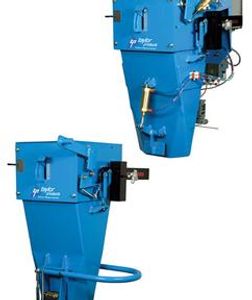

Taylor OM-2 Mechanical Bagging Scale
The OM2 Series of open mouth baggers use Taylor's patented self-damping beam scale for reliability and accuracy. The flow control regulates the speed of material going through the scale and can be adjusted for light or heavy density material. The OM2 is completely mechanical requiring no compressed air or electricity. The OM2A features a pneumatic cutoff gate and pneumatic bag clamps for ease of operation. Up to 12 bpm rate Ideal entry level or start up scale Adjustable flow gate OM2 features concentric bag clamp for positive grip OM2A features pneumatic bag clamps with automatic bag release Products typically handled with an OM2 series bagging scale: Wheat Feed Mixes Granular Fertilizer Cracked Corn Deer Corn Mixes
ESP GBAO Mechanical Bagging Scale
The ESP GBAO is a mechanical gross weigh scale with pneumatically operated dust tight bag clamps for handling free-flowing dusty products with a 4oz. accuracy.
JEM Wolverine Mechanical Bagging Scale
The Wolverine provides an economical approach to filling bags from 10 lbs. to 110 lbs. Typical production speeds are 4-5 bags per minute at -/+ 4oz. accuracy. The GWM scales can be supplied with a variety of spout sizes to accommodate your specific bag dimensions. Flex-Belt and Auger feeders are available to handle products that are not free flowing in nature. The scales are available in mild 10 gauge steel or can be supplied with stainless steel product contact surfaces or all stainless steel construction for corrosive or food grade products such as salt, fertilizer and various food products.
Electronic Gross Weigh

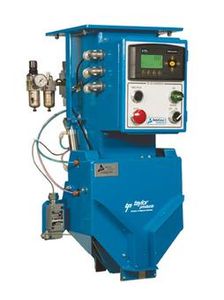

Taylor TE-100 Electronic Gross Weigh Bagging Scale
Taylor Products' TE100 open mouth bagging scale is loaded with standard features that are optional on many other brands of scales. The innovative scale has a self-correcting feature that monitors final weights and compensates automatically for precise weightments. The adjustable dribble gate and dual set point fill cycle combine to provide the best speed and accuracy. Up to 14 bpm rate Compact design Bulk / Dribble fill cycle Bag in place switch prevents material spills Self Correcting weight feature Stainless Steel construction available Products typically handled with a TE100 Bagging Scale: Certified Seed Pelleted Feed Soybeans Lentils Fertilizer Salt Granulated Sugar

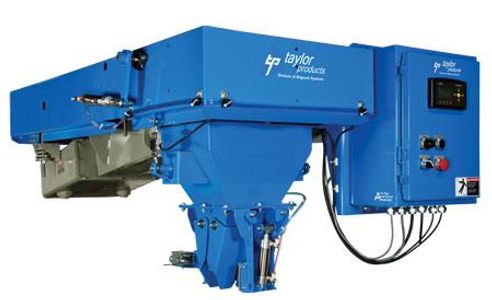

Taylor TEVG Electronic Bagging Scale
The VG Series bagging scale weighs products with bulky or erratic flow characteristics with extreme accuracy. The vibratory feeder moves the difficult material from the hopper to the bag. It utilizes an adjustable two-speed feed rate on the feeder to provide the best combination of speed and accuracy for difficult products. Up to 8 bpm Standard Bulk / Dribble fill cycle with adjustable vibratory speed settings Pneumatic product cutoff gate on vibratory feeder V-Clamp provides positive bag holding during fill cycle Optional Belt feeder available Products typically handled with a VG gross weigh scale: Wood Chips Hay Cubes Grass Seed Volcanic Rock

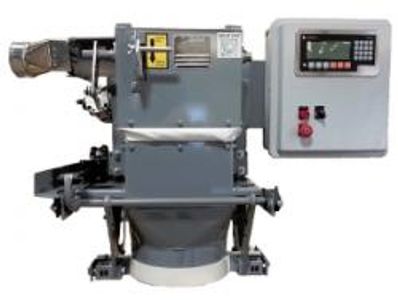

JEM Wildcat Weigh Bagging Scale
The Wildcat provides an economical approach to filling bags from 10 lbs. to 110 lbs. with an electronic digital bagging scale. Typical production speeds and accuracies are twice that of the GWM Wolverine mechanical scale providing 8 bags per minute at -/+ 2oz. accuracy per bag. The Wildcat system includes a digital programmable controller with memory retained recipe codes, JEM-Link data and troubleshooting connections and is NEMA 4X-IP65 rated. The system comes standard with two 220 lb. single point compression load cells, bulk and dribble gravity gate, air operated center grip spout with foot pedal clamp activation, complete electrical and pneumatic controls package with transformer for 24V controls.
Net Weigh Electronic

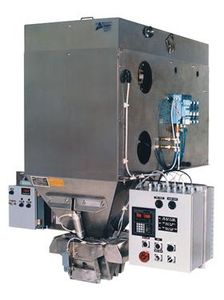

Taylor TEGN Electronic Net Weigh Bagging Scale
The GN net weigh scale is designed for packaging free-flowing, granular products into open mouth bags. The net weigh bucket continuously refills with product and is discharged by the operator's signal. The internal bulk and dribble flow gates are adjustable for use with a variety of products and the digital keypad provides easy setup. Duplex units provide a faster bagging rate and can be used for feeding automatic bag hangers. Up to 14 bpm rate on simplex Up to 22 bpm rate on duplex Bulk / Dribble fill cycle V-Clamp provides positive bag holding during fill cycle Digital keypad interface Stainless Steel construction available Products typically handled with a GN net weigh scale: Certified Seed Pelleted Feed Soybeans Lentils Fertilizer Salt Granulated Sugar

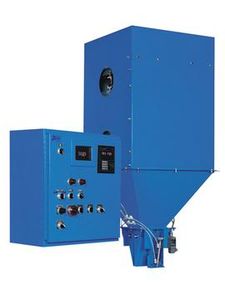

Taylor TEVN Electronic Net Weigh Bagging Scale
The GN net weigh scale is designed for packaging free-flowing, granular products into open mouth bags. The net weigh bucket continuously refills with product and is discharged by the operator's signal. The internal bulk and dribble flow gates are adjustable for use with a variety of products and the digital keypad provides easy setup. Duplex units provide a faster bagging rate and can be used for feeding automatic bag hangers. Up to 14 bpm rate on simplex Up to 22 bpm rate on duplex Bulk / Dribble fill cycle V-Clamp provides positive bag holding during fill cycle Digital keypad interface Stainless Steel construction available Products typically handled with a GN net weigh scale: Certified Seed Pelleted Feed Soybeans Lentils Fertilizer Salt Granulated Sugar

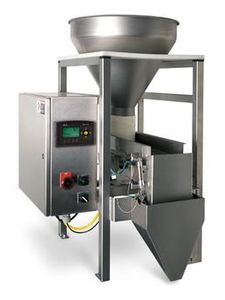

Taylor TE-10 Electronic Small Packager
The TE10 Series are electronic, small net weigh scales designed for weighments of 2 oz. to 12 lb. The TE10 Series is designed with a solid mount net weigh bucket to increase accuracy. The TE10 Series will meter out granular material into bags, pouches or pails. Up to 24 weighments per minute Simplex, Duplex and Jumbo configurations Standard Bulk / Dribble fill cycle Adjustable product flow via rubber hopper transition Direct mount net weigh bucket Interchangeable spout design for a variety of bag or pail sizes Products typically handled with a TE10 Series net weigh scales: Pet Food Salt Seeds / Grains Candies Coffee (whole bean and ground) Most granulatar products
